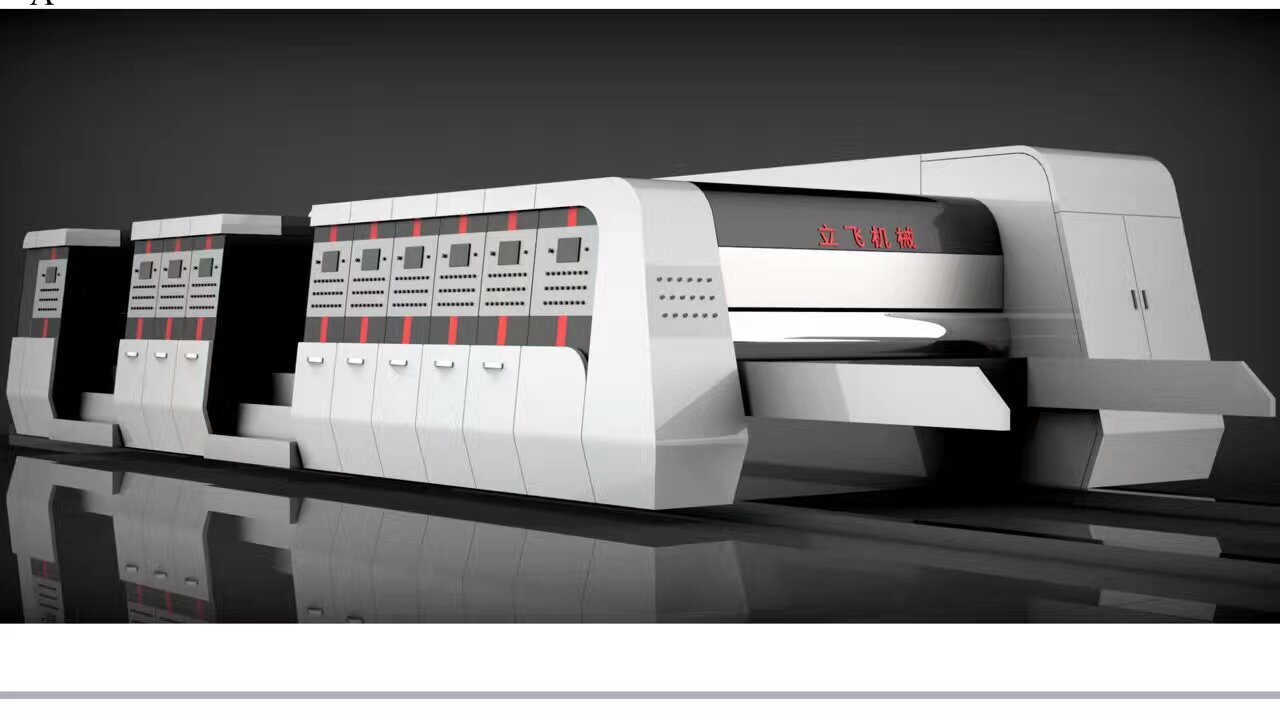

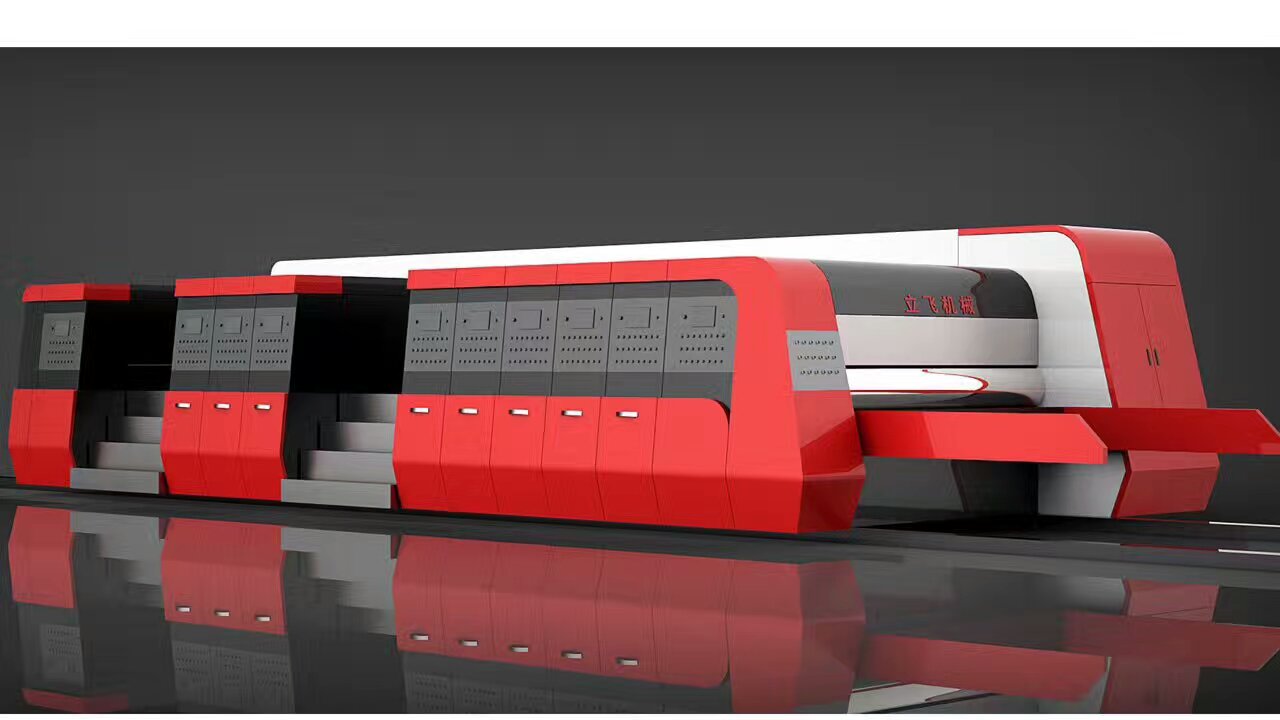

servo vacuum transfer corrugated carton flexo printing machine,900/1200,fixed unit or movable unit, case maker

Product Categories

DONGGUANG COUNTY XINZHEDA TRADING CO.,LTD

Contact Now

Add to Cart

Specification

1. the whole machine servo control, reduce error of mechanical trasmission.

2. printing unit vaccum transfer, servo control.

3. computer control

4. IR drying for flexo ink, UR drying for UV coating.

5. high LPI precisied printing.

6. short change order time, high efficiency.

Main parameters

model	900*2200 full vacuum non-axis printing and die cutting machine
feeding	Servo motor drive, vacuum feeding
color	multi colours+ flexo/UV glazing
the highest speed	250 pcs/min
economic speed	180pcs/min
max feeding size	880×2000 mm
min feeding size	320×650 mm
max printing size	800×1800 mm
standard printing thickness	7.2 mm
max paperboard thickness	12 mm
Min slotting interval	24080240*80
max slotting depth	250mm
